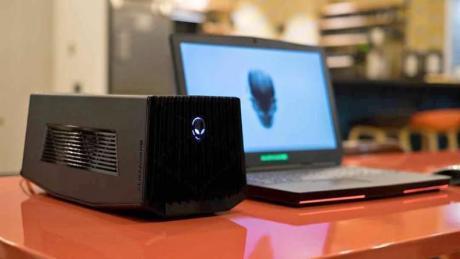

Alienware Graphics Amplifier (model Z01G)

Alienware Graphics Amplifier (model Z01G)It boosts gaming performance using a dedicated desktop GPU,

****- (Without GPU)****

The Alienware Graphics Amplifier (model Z01G) is designed for specific Alienware laptops featuring a proprietary port, including Alienware 13 (R2/R3), 15 (R2/R3/R4), 17 (R3/R4/R5), m15 (R1/R2/R3/R4), m17 (R1/R2/R3/R4), Area-51m, Area-51m R2, Alpha R2, and X51 R3. It boosts gaming performance using a dedicated desktop GPU,

Key Compatible Laptop Models:

Alienware 13: R2, R3
Alienware 15: R2, R3, R4
Alienware 17: R3, R4, R5
Alienware m15: R1, R2, R3, R4
Alienware m17: R1, R2, R3, R4
Alienware Area-51m: R1, R2
Other: Alpha R2, X51 R3

Key Details for Usage:

Connection: Uses a proprietary cable, not Thunderbolt.

GPU Support: Supports standard full-length, dual-wide PCIe desktop graphics cards, generally up to 375W.

Power: Includes an internal 460W power supply.

Restrictions: Requires an external monitor for best performance and does not support hot-swapping; the laptop must be restarted to detect the amplifier.

Alienware Graphics Amplifier (model Z01G) supports a wide range of full-length, dual-slot NVIDIA and AMD desktop graphics cards. Compatible cards typically include NVIDIA GeForce RTX 20-series, GTX 10-series, 900-series, and some 30-series, along with AMD options, provided they fit within the 10.5" length constraint and use 460W or less

Key Compatibility and Requirements:

Physical Size: The unit is designed for standard double-wide PCIe cards with maximum dimensions of 267 mm x 112 mm x 40 mm (roughly 10.5 inches).Power: It houses a 460W power supply and provides two 6+2 pin PCIe connectors.NVIDIA Compatibility: Officially supports up to RTX 2080 Ti. Many users have reported success with RTX 3060, 3070, and 3080 cards, though some require custom fixes or specific BIOS settings.AMD Compatibility: Supports various AMD Radeon cards, though some newer cards may require driver adjustments.System Compatibility: The Z01G is compatible with Alienware laptops with a dedicated amplifier port, including the Alienware 13, 15, 17, and X51 models.

Commonly Used GPUs:NVIDIA: RTX 2080 Ti, 2070, 2060, GTX 1080 Ti, 1070 Ti, 1060, Titan X/XP.AMD: RX 5000/6000 series (often with troubleshooting)
